3245-TTX...

Screwdriver Sockets 1/2"

Screwdriver Sockets 1/2"
Details
  • for Inside-TORX® safety screws
  • with bore hole in tip
  • chrome-plated, polished
  • knurled
  • holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
  • female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
  • blade made of ELORA-Vanadium special steel, gunmetal finished
  • TORX® = reg. trademark of Acument Intellectual Properties, LLC. USA
Manufacturer ↓ ↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Print Datasheet

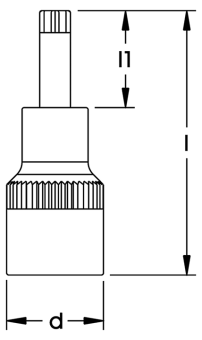

Explanation for the table
Code Number l1
mm		 d
mm		 Length
mm		 Torx size corner to corner
mm		 Weight
g		 add
3245020201000 3245-TTX 20 17,0 23,0 55 3,86 67
PU: 6
3245020251000 3245-TTX 25 17,0 23,0 55 4,43 68
PU: 6
3245020271000 3245-TTX 27 17,0 23,0 55 4,99 68
PU: 6
3245020301000 3245-TTX 30 17,0 23,0 55 5,52 68
PU: 6
3245020401000 3245-TTX 40 17,0 23,0 55 6,65 69
PU: 6
3245020451000 3245-TTX 45 17,0 23,0 55 7,82 70
PU: 6
3245020501000 3245-TTX 50 17,0 23,0 55 8,83 73
PU: 6
3245020551000 3245-TTX 55 17,0 23,0 56 11,22 112
PU: 6
3245020601000 3245-TTX 60 17,0 23,0 56 13,25 117
PU: 6
Code No.
3245020201000 3245-TTX 20
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 3,86
Weight g67
PU6
3245020251000 3245-TTX 25
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 4,43
Weight g68
PU6
3245020271000 3245-TTX 27
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 4,99
Weight g68
PU6
3245020301000 3245-TTX 30
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 5,52
Weight g68
PU6
3245020401000 3245-TTX 40
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 6,65
Weight g69
PU6
3245020451000 3245-TTX 45
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 7,82
Weight g70
PU6
3245020501000 3245-TTX 50
Details
l1 mm 17,0
d mm 23,0
Length mm 55
Torx size corner to corner mm 8,83
Weight g73
PU6
3245020551000 3245-TTX 55
Details
l1 mm 17,0
d mm 23,0
Length mm 56
Torx size corner to corner mm 11,22
Weight g112
PU6
3245020601000 3245-TTX 60
Details
l1 mm 17,0
d mm 23,0
Length mm 56
Torx size corner to corner mm 13,25
Weight g117
PU6

Properties

Made in Germany - manufactured in Remscheid

Made in Germany - manufactured in Remscheid

The production of ELORA products takes place in our own factory in Remscheid. Everything from the blank to the end product is produced in the middle of Germany. The individually designed tool consists of high-quality European ELORA chrome vanadium steel 31 CrV3/1.2008.
Torque values ​​above DIN standard

Torque values ​​above DIN standard

We promise a torque value above the DIN standard, which means that higher torque values ​​can be achieved.
Hot forged tool

Hot forged tool

ELORA tools are hot forged. As a result, a continuous fiber structure is achieved in the metal, which runs parallel to the outer shape. Thus, the stresses in the hand-operated tool are reduced to a minimum, this ensures increased durability and strength.
Long lifetime

Long lifetime

The ELORA tool is robust and solid due to the high-quality processing, which ensures low abrasion and wear. Because of this and the excellent corrosion and surface protection , we guarantee a long service life.
