3225-PZ...

Screwdriver Sockets 1/2"

Details
  • for cross slotted screws
  • chrome-plated, polished
  • knurled
  • holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
  • female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
  • blade made of ELORA-Vanadium special steel, gunmetal finished
  • blade according to DIN ISO 8764-1 PZ

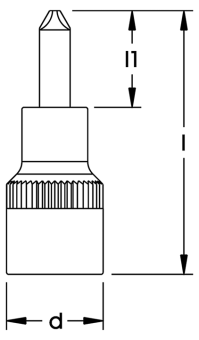

Code Number Sizes of threads
Length
mm
l1
mm
d
mm
Weight
g
PU add
3225000022000 3225-PZ2 5-10 56 17,0 23,0 70 6
3225000032000 3225-PZ3 12-16 56 17,0 23,0 75 6
3225000042000 3225-PZ 4 18 -> 56 17,0 23,0 80 6
Code Number
3225000022000 3225-PZ2

Details
Sizes of threads 5-10
Length mm 56
l1 mm 17,0
d mm 23,0
Weight g70
PU6
add
3225000032000 3225-PZ3

Details
Sizes of threads 12-16
Length mm 56
l1 mm 17,0
d mm 23,0
Weight g75
PU6
add
3225000042000 3225-PZ 4

Details
Sizes of threads 18 ->
Length mm 56
l1 mm 17,0
d mm 23,0
Weight g80
PU6
add
