3220-PH...

Screwdriver Sockets 1/2"

Details
  • for cross slotted screws
  • chrome-plated, polished
  • knurled
  • holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
  • female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
  • blade made of ELORA-Vanadium special steel, gunmetal finished
  • blade according to DIN ISO 8764-1 PH

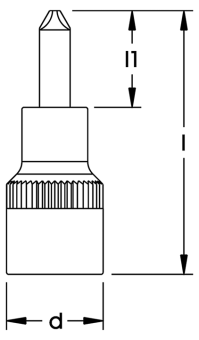

Code Number Sizes of threads
mm
Length
mm
l1
mm
d
mm
Weight
g
PU add
3220000022000 3220-PH2 3,1-5,2 56 17,0 23,0 75 6

3220000032000 3220-PH3 5,3-7,2 56 17,0 23,0 75 6

3220000042000 3220-PH4 7,3-12,7 56 17,0 23,0 80 6

Code Number
3220000022000 3220-PH2

Details
Sizes of threads mm 3,1-5,2
Length mm 56
l1 mm 17,0
d mm 23,0
Weight g75
PU6
add
3220000032000 3220-PH3

Details
Sizes of threads mm 5,3-7,2
Length mm 56
l1 mm 17,0
d mm 23,0
Weight g75
PU6
add
3220000042000 3220-PH4

Details
Sizes of threads mm 7,3-12,7
Length mm 56
l1 mm 17,0
d mm 23,0
Weight g80
PU6
add
Made in Germany - manufactured in Remscheid

Made in Germany - manufactured in Remscheid

The production of ELORA products takes place in our own factory in Remscheid. Everything from the blank to the end product is produced in the middle of Germany. The individually designed tool consists of high-quality European ELORA chrome vanadium steel 31 CrV3/1.2008.
Torque values ​​above DIN standard

Torque values ​​above DIN standard

We promise a torque value above the DIN standard, which means that higher torque values ​​can be achieved.
Hot forged tool

Hot forged tool

ELORA tools are hot forged. As a result, a continuous fiber structure is achieved in the metal, which runs parallel to the outer shape. Thus, the stresses in the hand-operated tool are reduced to a minimum, this ensures increased durability and strength.
Long lifetime

Long lifetime

The ELORA tool is robust and solid due to the high-quality processing, which ensures low abrasion and wear. Because of this and the excellent corrosion and surface protection , we guarantee a long service life.
