3210-INZ...
Screwdriver Sockets 1/2"
Details
- for inside hexagon screws with bore hole
- with pin for IC-screws
- chrome-plated, polished
- knurled
- holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- blade made of ELORA-Vanadium special steel, gunmetal finished
Manufacturer
↓
↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Print Datasheet

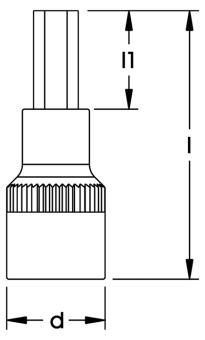

Explanation for the table
| Code | Number | Length mm |
l1 mm |
d mm |
for thread diameter DIN 912 |
Weight g |
add |
|---|---|---|---|---|---|---|---|
| 3210050052000 | 3210-INZ 5 | 60 | 22,0 | 23,0 | M6 | 65 | |
| 3210050062000 | 3210-INZ 6 | 60 | 22,0 | 23,0 | M8 | 75 | |
| 3210050082000 | 3210-INZ 8 | 60 | 22,0 | 23,0 | M10 | 80 | |
| 3210050102000 | 3210-INZ 10 | 60 | 22,0 | 23,0 | M12 | 90 | |
| 3210050122000 | 3210-INZ 12 | 60 | 22,0 | 23,0 | M14 | 115 | |
| 3210050142000 | 3210-INZ 14 | 60 | 22,0 | 23,0 | M16 | 120 |
| Code | No. | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3210050052000 | 3210-INZ 5 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3210050062000 | 3210-INZ 6 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3210050082000 | 3210-INZ 8 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3210050102000 | 3210-INZ 10 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3210050122000 | 3210-INZ 12 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3210050142000 | 3210-INZ 14 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
Properties
.jpg "Made in Germany - manufactured in Remscheid")
Made in Germany - manufactured in Remscheid
The production of ELORA products takes place in our own factory in Remscheid. Everything from the blank to the end product is produced in the middle of Germany. The individually designed tool consists of high-quality European ELORA chrome vanadium steel 31 CrV3/1.2008.
Torque values above DIN standard
We promise a torque value above the DIN standard, which means that higher torque values can be achieved.
Hot forged tool
ELORA tools are hot forged. As a result, a continuous fiber structure is achieved in the metal, which runs parallel to the outer shape. Thus, the stresses in the hand-operated tool are reduced to a minimum, this ensures increased durability and strength.
