3240-RIB...
Screwdriver Sockets 1/2"
Details
- for RIBE®-CV-screws
- chrome-plated, polished
- knurled
- holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- blade made of ELORA-Vanadium special steel, gunmetal finished
- RIBE® = reg. trademark of Richard Bergner GmbH &Co KG, Schwabach
Manufacturer
↓
↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Print Datasheet

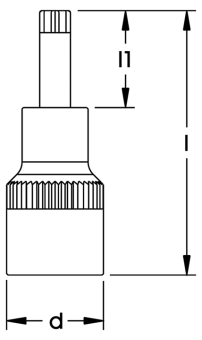

| Code | Number | l1 mm |
d mm |
Length mm |
Sizes of threads |
Weight g |
add |
|---|---|---|---|---|---|---|---|
| 3240000082000 | 3240-RIB 8 | 25,0 | 23,0 | 63 | M8 | 80 | |
| 3240000122000 | 3240-RIB 12 | 25,0 | 23,0 | 63 | M12 | 120 | |
| 3240000142000 | 3240-RIB 14 | 25,0 | 23,0 | 63 | M14 | 135 | |
| 3240000162000 | 3240-RIB 16 | 23,0 | 24,0 | 63 | M16 | 130 |
| Code | No. | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3240000082000 | 3240-RIB 8 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3240000122000 | 3240-RIB 12 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3240000142000 | 3240-RIB 14 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 3240000162000 | 3240-RIB 16 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
