326-...

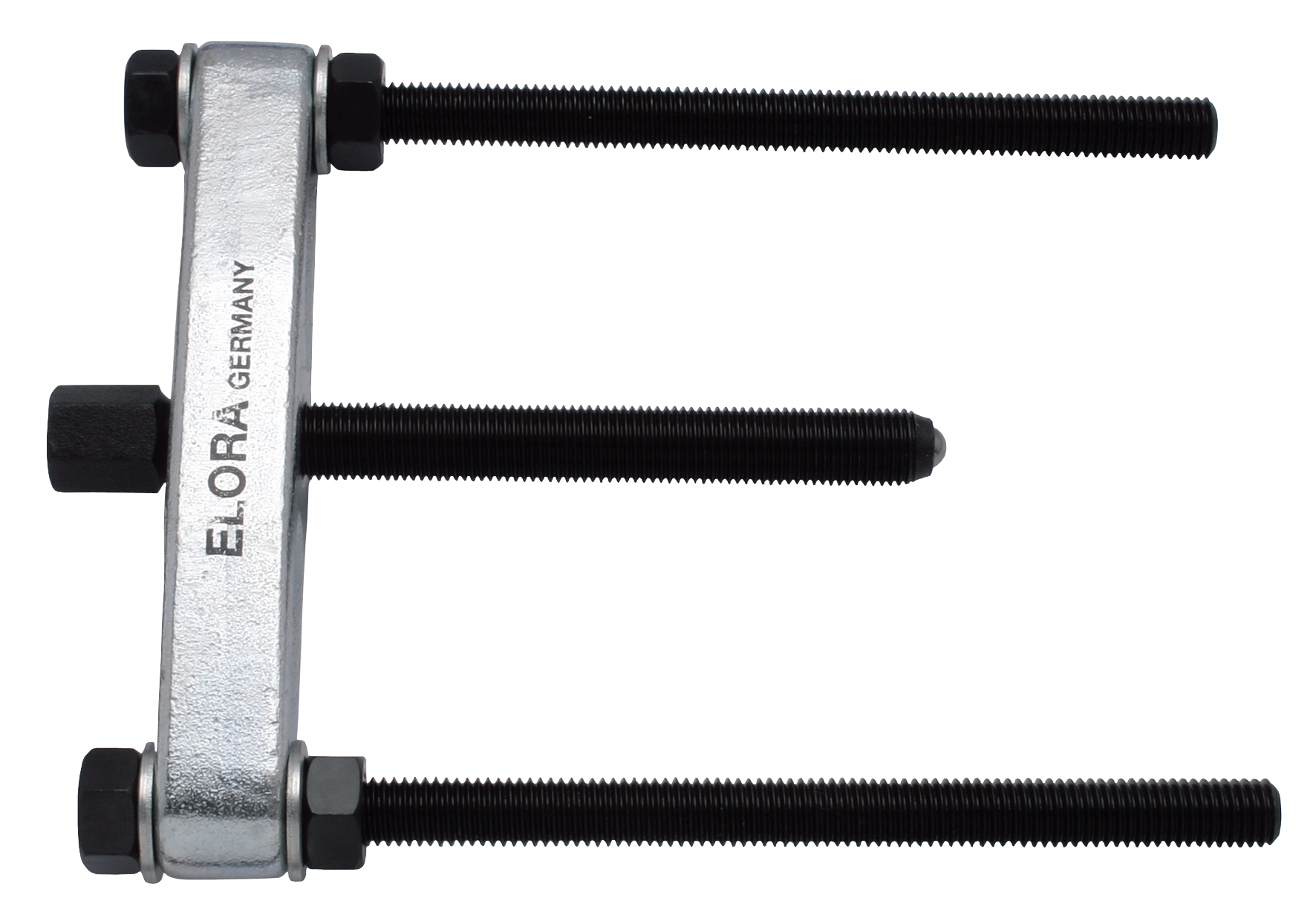

Pulling Unit for Separators
Details
- for pulling off ball and roller bearings and close-fitting components
- zinc-plated, spindles gunmetal-finish
- high grade tool steel
Manufacturer
↓
↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Print Datasheet
| Code | Number | Span width mm |
Wrench size mm |
Sizes of threads |
for tapered blade |
Weight g |
add |
|---|---|---|---|---|---|---|---|
| 0326000456100 | 326-45 | 45-110 | 15 | M10 | 325-60 | 900 | |
| 0326000556100 | 326-55 | 55-140 | 15 | M12 | 325-75 | 2200 | |
| 0326000606100 | 326-60 | 60-215 | 22 | M12 | 325-115 | 5100 | |
| 0326000856100 | 326-85 | 85-295 | 24 | M20 | 325-150 | 8000 |
| Code | No. | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0326000456100 | 326-45 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 0326000556100 | 326-55 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 0326000606100 | 326-60 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
| 0326000856100 | 326-85 | |||||||||||||||||||||||
|
||||||||||||||||||||||||
