Double-Ended Ring Spanner, straight, metric

Double-Ended Ring Spanner, straight, metric
Details
  • flat and straight pattern
  • thin-walled heads
  • matt chrome plated
  • ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
  • Ausführung nach DIN 837, Form B, ISO 3318, ISO 1085
Manufacture ↓ ↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Deutschland
T: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Print Datasheet

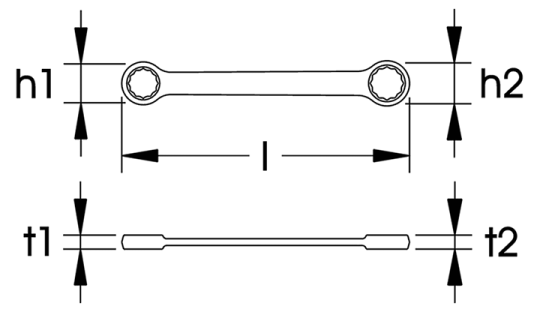

Explanation for the table
Code Number h1
mm		 h2
mm		 t1
mm		 t2
mm		 Weight
g		 More add
0120006071000 120-6x7 10,0 11,0 4,0 4,0 11
PU: 12
Length mm: 100
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120008091000 120-8x9 13,0 14,5 4,5 4,5 16
PU: 12
Length mm: 115
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120010111000 120-10x11 15,0 17,0 6,0 6,0 26
PU: 12
Length mm: 125
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120012131000 120-12x13 18,5 20,0 7,0 7,0 37
PU: 12
Length mm: 140
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120012141000 120-12x14 18,5 20,0 7,0 7,0 37
PU: 12
Length mm: 140
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120013161000 120-13x16 20,5 25,0 8,0 8,0 70
PU: 12
Length mm: 170
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120014151000 120-14x15 21,0 22,0 7,5 7,5 70
PU: 12
Length mm: 155
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120016171000 120-16x17 24,0 25,0 8,0 8,0 70
PU: 12
Length mm: 170
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120016181000 120-16x18 24,0 25,0 8,0 8,0 70
PU: 12
Length mm: 170
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120017191000 120-17x19 27,0 28,5 9,0 9,0 90
PU: 6
Length mm: 185
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120018191000 120-18x19 27,0 28,5 9,0 9,0 90
PU: 6
Length mm: 185
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120018211000 120-18x21 30,0 33,0 10,0 10,0 116
PU: 6
Length mm: 200
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120020221000 120-20x22 30,0 33,0 10,0 10,0 116
PU: 6
Length mm: 200
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120021221000 120-21x22 32,0 34,0 10,5 10,5 140
PU: 6
Length mm: 215
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120021231000 120-21x23 32,0 34,0 10,5 10,5 140
PU: 6
Length mm: 215
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120022241000 120-22x24 32,0 34,0 11,5 11,5 140
PU: 6
Length mm: 215
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120024261000 120-24x26 35,0 39,0 11,5 11,5 200
PU: 6
Length mm: 240
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120024271000 120-24x27 35,0 39,0 11,5 11,5 205
PU: 6
Length mm: 240
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120025281000 120-25x28 37,0 41,0 12,5 12,5 215
PU: 6
Length mm: 265
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120030321000 120-30x32 44,0 46,0 13,0 13,0 290
PU: 6
Length mm: 285
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120036411000 120-36x41 51,0 58,0 15,0 15,0 515
PU: 3
Length mm: 390
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
Code No.
0120006071000 120-6x7
Details
h1 mm 10,0
h2 mm 11,0
t1 mm 4,0
t2 mm 4,0
Length mm 100
Weight g11
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120008091000 120-8x9
Details
h1 mm 13,0
h2 mm 14,5
t1 mm 4,5
t2 mm 4,5
Length mm 115
Weight g16
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120010111000 120-10x11
Details
h1 mm 15,0
h2 mm 17,0
t1 mm 6,0
t2 mm 6,0
Length mm 125
Weight g26
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120012131000 120-12x13
Details
h1 mm 18,5
h2 mm 20,0
t1 mm 7,0
t2 mm 7,0
Length mm 140
Weight g37
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120012141000 120-12x14
Details
h1 mm 18,5
h2 mm 20,0
t1 mm 7,0
t2 mm 7,0
Length mm 140
Weight g37
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120013161000 120-13x16
Details
h1 mm 20,5
h2 mm 25,0
t1 mm 8,0
t2 mm 8,0
Length mm 170
Weight g70
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120014151000 120-14x15
Details
h1 mm 21,0
h2 mm 22,0
t1 mm 7,5
t2 mm 7,5
Length mm 155
Weight g70
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120016171000 120-16x17
Details
h1 mm 24,0
h2 mm 25,0
t1 mm 8,0
t2 mm 8,0
Length mm 170
Weight g70
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120016181000 120-16x18
Details
h1 mm 24,0
h2 mm 25,0
t1 mm 8,0
t2 mm 8,0
Length mm 170
Weight g70
PU12
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120017191000 120-17x19
Details
h1 mm 27,0
h2 mm 28,5
t1 mm 9,0
t2 mm 9,0
Length mm 185
Weight g90
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120018191000 120-18x19
Details
h1 mm 27,0
h2 mm 28,5
t1 mm 9,0
t2 mm 9,0
Length mm 185
Weight g90
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120018211000 120-18x21
Details
h1 mm 30,0
h2 mm 33,0
t1 mm 10,0
t2 mm 10,0
Length mm 200
Weight g116
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120020221000 120-20x22
Details
h1 mm 30,0
h2 mm 33,0
t1 mm 10,0
t2 mm 10,0
Length mm 200
Weight g116
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120021221000 120-21x22
Details
h1 mm 32,0
h2 mm 34,0
t1 mm 10,5
t2 mm 10,5
Length mm 215
Weight g140
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120021231000 120-21x23
Details
h1 mm 32,0
h2 mm 34,0
t1 mm 10,5
t2 mm 10,5
Length mm 215
Weight g140
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120022241000 120-22x24
Details
h1 mm 32,0
h2 mm 34,0
t1 mm 11,5
t2 mm 11,5
Length mm 215
Weight g140
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120024261000 120-24x26
Details
h1 mm 35,0
h2 mm 39,0
t1 mm 11,5
t2 mm 11,5
Length mm 240
Weight g200
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120024271000 120-24x27
Details
h1 mm 35,0
h2 mm 39,0
t1 mm 11,5
t2 mm 11,5
Length mm 240
Weight g205
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120025281000 120-25x28
Details
h1 mm 37,0
h2 mm 41,0
t1 mm 12,5
t2 mm 12,5
Length mm 265
Weight g215
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120030321000 120-30x32
Details
h1 mm 44,0
h2 mm 46,0
t1 mm 13,0
t2 mm 13,0
Length mm 285
Weight g290
PU6
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working
0120036411000 120-36x41
Details
h1 mm 51,0
h2 mm 58,0
t1 mm 15,0
t2 mm 15,0
Length mm 390
Weight g515
PU3
Productinformation:
ELORA "ELO-Drive"
Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side:
higher torque
  • on the flanks of the screws/nuts
  • without damage of the same
  • dynamic and safe working

Properties

Made in Germany - manufactured in Remscheid

Made in Germany - manufactured in Remscheid

The production of ELORA products takes place in our own factory in Remscheid. Everything from the blank to the end product is produced in the middle of Germany. The individually designed tool consists of high-quality European ELORA chrome vanadium steel 31 CrV3/1.2008.
Torque values ​​above DIN standard

Torque values ​​above DIN standard

We promise a torque value above the DIN standard, which means that higher torque values ​​can be achieved.
Matt chrome finish

Matt chrome finish

The ELORA products have a matt chrome finish. In addition to a glare-free appearance, this also ensures permanent protection against corrosion. Even after years they still look classy.
Hot forged tool

Hot forged tool

ELORA tools are hot forged. As a result, a continuous fiber structure is achieved in the metal, which runs parallel to the outer shape. Thus, the stresses in the hand-operated tool are reduced to a minimum, this ensures increased durability and strength.
Long lifetime

Long lifetime

The ELORA tool is robust and solid due to the high-quality processing, which ensures low abrasion and wear. Because of this and the excellent corrosion and surface protection , we guarantee a long service life.
