791LT-...

Impact Sockets 3/4", extra deep, metric

Impact Sockets 3/4", extra deep, metric
Details
  • for power tools
  • special steel, phosphated
  • female square drive according to DIN 3121-H 20, ISO 1174
Manufacturer ↓ ↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: [email protected]
Print Datasheet

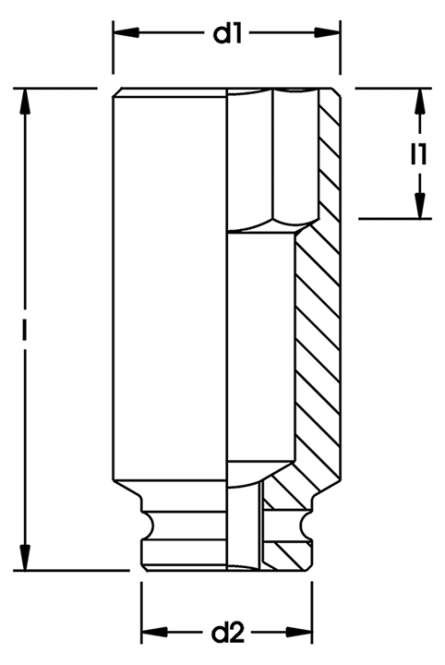

Explanation for the table
Code Number Length
mm		 l1
mm		 d1
mm		 d2
mm		 Weight
g		 More add
0791020175100 791LT-17 100 15 30 44 603
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020195100 791LT-19 100 17 32,5 44 620
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020225100 791LT-22 100 19 36,5 44 695
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020245100 791LT-24 100 21 39 44 745
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020275100 791LT-27 100 23 42,5 44 828
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020305100 791LT-30 100 25 46,5 44 869
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020325100 791LT-32 100 26 49 44 921
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020335100 791LT-33 100 26 50 44 984
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020345100 791LT-34 100 27 51,5 44 1001
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020365100 791LT-36 100 29 54 44 1050
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020385100 791LT-38 100 30 56,5 44 1187
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020415100 791LT-41 100 31 60 44 1272
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020465100 791LT-46 100 33 66,5 44 1581
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020505100 791LT-50 90 27 70 54 1400
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020555100 791LT-55 94 30 78 54 1800
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020605100 791LT-60 98 33 82 54 1900
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020655100 791LT-65 105 38 86 54 2000
PU: 1
Locking Pin : 7913-37
Locking Ring : 7914-36
Productinformation:
Attention:
locking pin and locking ring are not included!
Code No.
0791020175100 791LT-17
Details
Length mm 100
l1 mm 15
d1 mm 30
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g603
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020195100 791LT-19
Details
Length mm 100
l1 mm 17
d1 mm 32,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g620
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020225100 791LT-22
Details
Length mm 100
l1 mm 19
d1 mm 36,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g695
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020245100 791LT-24
Details
Length mm 100
l1 mm 21
d1 mm 39
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g745
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020275100 791LT-27
Details
Length mm 100
l1 mm 23
d1 mm 42,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g828
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020305100 791LT-30
Details
Length mm 100
l1 mm 25
d1 mm 46,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g869
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020325100 791LT-32
Details
Length mm 100
l1 mm 26
d1 mm 49
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g921
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020335100 791LT-33
Details
Length mm 100
l1 mm 26
d1 mm 50
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g984
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020345100 791LT-34
Details
Length mm 100
l1 mm 27
d1 mm 51,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1001
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020365100 791LT-36
Details
Length mm 100
l1 mm 29
d1 mm 54
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1050
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020385100 791LT-38
Details
Length mm 100
l1 mm 30
d1 mm 56,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1187
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020415100 791LT-41
Details
Length mm 100
l1 mm 31
d1 mm 60
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1272
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020465100 791LT-46
Details
Length mm 100
l1 mm 33
d1 mm 66,5
d2 mm 44
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1581
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020505100 791LT-50
Details
Length mm 90
l1 mm 27
d1 mm 70
d2 mm 54
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1400
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020555100 791LT-55
Details
Length mm 94
l1 mm 30
d1 mm 78
d2 mm 54
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1800
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020605100 791LT-60
Details
Length mm 98
l1 mm 33
d1 mm 82
d2 mm 54
Locking Pin 7913-37
Locking Ring 7914-36
Weight g1900
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
0791020655100 791LT-65
Details
Length mm 105
l1 mm 38
d1 mm 86
d2 mm 54
Locking Pin 7913-37
Locking Ring 7914-36
Weight g2000
PU1
Productinformation:
Attention:
locking pin and locking ring are not included!
