790LT-...

Impact Sockets 1/2", extra deep, metric

Impact Sockets 1/2", extra deep, metric
Details
  • for power tools
  • special steel, phosphated
  • female square drive according to DIN 3121-G 12,5, ISO 1174
Manufacturer ↓ ↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 (0) 2191 / 56 27 0
Email: info@elora.de
Print Datasheet

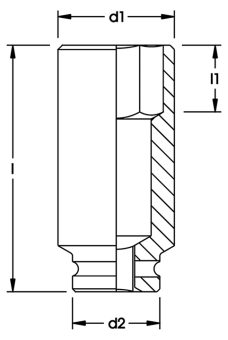

Explanation for the table
Code Number Length
mm		 Locking Ring
 Locking Pin
 d1
mm		 Weight
g		 More add
0790020105100 790LT-10 85 7904-20 7903-20 17 155
PU: 6
d2 mm: 25
l1 mm: 12
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020135100 790LT-13 85 7904-20 7903-20 21 160
PU: 6
d2 mm: 25
l1 mm: 14
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020145100 790LT-14 85 7904-20 7903-20 22,5 185
PU: 6
d2 mm: 25
l1 mm: 15
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020155100 790LT-15 85 7904-24 7903-25 23,5 210
PU: 6
d2 mm: 30
l1 mm: 15
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020165100 790LT-16 85 7904-24 7903-25 25 210
PU: 6
d2 mm: 30
l1 mm: 15
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020175100 790LT-17 85 7904-24 7903-25 26 230
PU: 6
d2 mm: 30
l1 mm: 15
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020185100 790LT-18 85 7904-24 7903-25 27 240
PU: 6
d2 mm: 30
l1 mm: 16
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020195100 790LT-19 85 7904-24 7903-25 28,5 250
PU: 3
d2 mm: 30
l1 mm: 16
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020205100 790LT-20 85 7904-24 7903-25 30 260
PU: 3
d2 mm: 30
l1 mm: 19
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020215100 790LT-21 85 7904-24 7903-25 31 275
PU: 3
d2 mm: 30
l1 mm: 19
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020225100 790LT-22 85 7904-24 7903-25 32,5 300
PU: 3
d2 mm: 30
l1 mm: 19
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020245100 790LT-24 85 7904-24 7903-25 35 370
PU: 3
d2 mm: 30
l1 mm: 21
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020275100 790LT-27 85 7904-24 7903-25 38 430
PU: 3
d2 mm: 30
l1 mm: 23
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020305100 790LT-30 85 7904-24 7903-25 42 510
PU: 3
d2 mm: 30
l1 mm: 25
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020325100 790LT-32 85 7904-24 7903-25 44 560
PU: 3
d2 mm: 30
l1 mm: 25
Productinformation:
Attention:
locking pin and locking ring are not included!
Code No.
0790020105100 790LT-10
Details
Length mm 85
Locking Ring 7904-20
Locking Pin 7903-20
d1 mm 17
d2 mm 25
l1 mm 12
Weight g155
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020135100 790LT-13
Details
Length mm 85
Locking Ring 7904-20
Locking Pin 7903-20
d1 mm 21
d2 mm 25
l1 mm 14
Weight g160
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020145100 790LT-14
Details
Length mm 85
Locking Ring 7904-20
Locking Pin 7903-20
d1 mm 22,5
d2 mm 25
l1 mm 15
Weight g185
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020155100 790LT-15
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 23,5
d2 mm 30
l1 mm 15
Weight g210
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020165100 790LT-16
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 25
d2 mm 30
l1 mm 15
Weight g210
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020175100 790LT-17
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 26
d2 mm 30
l1 mm 15
Weight g230
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020185100 790LT-18
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 27
d2 mm 30
l1 mm 16
Weight g240
PU6
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020195100 790LT-19
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 28,5
d2 mm 30
l1 mm 16
Weight g250
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020205100 790LT-20
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 30
d2 mm 30
l1 mm 19
Weight g260
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020215100 790LT-21
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 31
d2 mm 30
l1 mm 19
Weight g275
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020225100 790LT-22
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 32,5
d2 mm 30
l1 mm 19
Weight g300
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020245100 790LT-24
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 35
d2 mm 30
l1 mm 21
Weight g370
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020275100 790LT-27
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 38
d2 mm 30
l1 mm 23
Weight g430
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020305100 790LT-30
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 42
d2 mm 30
l1 mm 25
Weight g510
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
0790020325100 790LT-32
Details
Length mm 85
Locking Ring 7904-24
Locking Pin 7903-25
d1 mm 44
d2 mm 30
l1 mm 25
Weight g560
PU3
Productinformation:
Attention:
locking pin and locking ring are not included!
